This service is for reprogramming the immobilizer system of your 2005, 2006, 2007, and 2008 Toyota Corolla or Toyota Matrix, either with automatic or manual transmission. FREE programming of your car’s VIN is included in this service.
This service is needed if:
- You lost all of your keys and need the ECM to accept a new key or keys.
- If your original ECM is defective and was replaced by a used ECM and you tried the sync process without success.
As part of this service:
1. If for any reason, the immobilizer memory chip is defective or damaged (this happens sometimes), then we will proceed to replace it for you and reprogram it at NO EXTRA CHARGE.
2. If your ECM software version is not up to date we will update it with the latest software (calibration) for your specific model, available directly from Toyota.
3. (Optional) For the VIN, we will use the same VIN found in the memory of the ECM. Should you require the programming of a different VIN for any reason, it can be optionally entered at checkout in a form provided for that purpose. So simply, if a VIN is provided, it will be used. Otherwise, we will use the VIN already existing in the ECM’s memory.
This service applies to the 2005-2008 Corolla or Matrix, with the following ECM part numbers. Since there could be models not listed, if you do not see your ECM part number in the table below, please contact us with your ECM part number (“89661-xxxxx”) so we can inform you if it is covered by this service.
| 89661-02C10 | 89661-02C11 | 89661-02C12 | 89661-02C13 | 89661-02C30 |
| 89661-02C91 | 89661-02D01 | 89661-02D02 | 89661-02D11 | 89661-02D12 |
| 89661-02D51 | 89661-02K10 | 89661-02K20 | 89661-02K21 | 89661-02K22 |
| 89661-02K23 | 89661-02K33 | 89661-02K40 | 89661-02K41 | 89661-02K42 |
| 89661-02K43 | 89661-02K50 | 89661-02K51 | 89661-02K52 | 89661-02K53 |
| 89661-02K80 | 89661-02R00 | 89661-02R01 | 89661-02R02 | 89661-02R10 |
| 89661-02R12 | 89661-02R31 | 89661-02R50 | 89661-0Z040 | 89661-0Z041 |
| 89661-0Z042 | 89661-0Z043 | 590-60782 | 590-50965 | 590-51541 |
In case you don’t know about the “Sync Process” for Toyota, which is something you can do yourself to synchronize the immobilizer of a used ECM to the immobilizer system of your car, the information about it can be found in the article in the link below. This DOES NOT work if you lost all the keys:
Toyota Corolla Immobilizer
OTHER NOTES ABOUT THIS SERVICE:
1. This solution is done by reprogramming a memory chip inside the ECM. No parts are removed and no modifications are done to the circuit. Your ECM is safe with us. This is a clean programming procedure. The only replacement that could be involved in this process is in the event of a defective memory chip. In that case, it will be replaced for FREE by an original part.
2. The ECMs that we receive are assumed to be in good working conditions. The scope of this service is the immobilizer circuit only and does not include repairing any defects of the ECM, except in the case where the immobilizer memory chip needs replacement.
3. The job will be done in just one business day and it will be shipped back to you the next business day.
4. When the ECM is returned to you, you just reinstall it in your car and it will be ready to use.
5. If entering the VIN in the order, please be accurate. The VIN must have 17 alphanumeric characters. If you provide a wrong or mistaken VIN, please contact us with the correct number within 24 hours after the order is placed. Otherwise, we cannot be held liable for programming the ECM with an incorrect VIN.
6. We understand that mistakes do happen. If you send the wrong VIN or if you require a different VIN and forget inform us in the provided form at checkout, you may send back the ECM and let us know the VIN so we can enter it. In this case, the service WILL NOT be charged, but we will need to charge the exact shipping expenses determined by USPS or FedEx (your choice). We DO NOT profit from shipping charges. Any discount offered by USPS or FedEx is passed directly to the customer.
7. The VIN form at checkout is optional. You do not have to provide it and can leave it blank if you do not require a change of VIN.
FAQ
Q. Where is the ECM located in my Corolla?

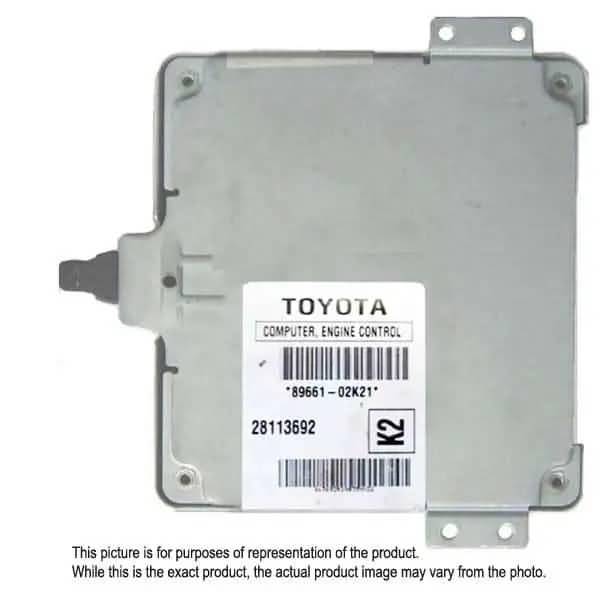

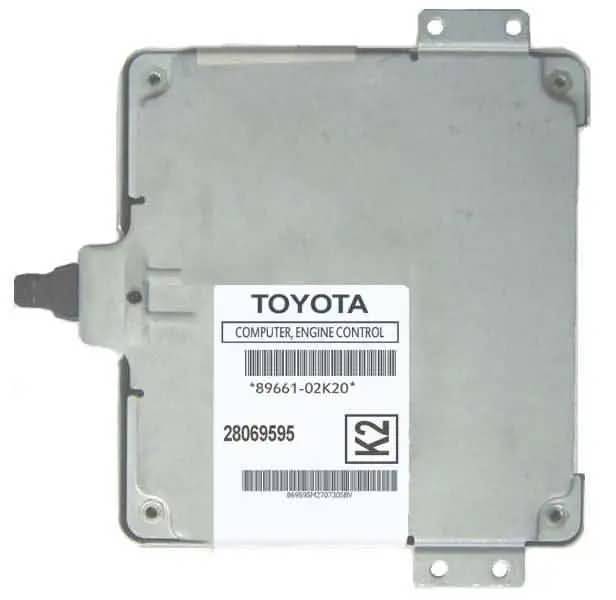

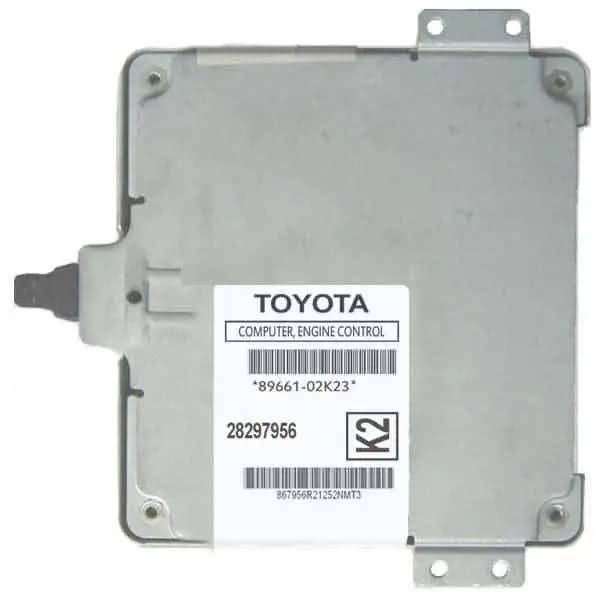

A. The ECM in these Toyota models is located below the glove compartment. It is a metallic box, with numbers in the following format; “89661-02xxx” or “89661-0Zxxx”. Examples are: “89661-02D02”, “89661-02K20”, “89661-02R00”, “89661-0Z0xx”, and others.
Q. How long will the service take?
A. The turnaround of the job is one business day and it is shipped back to you the next business day.
Q. What shipping services do you use?
A. We use the US Postal Service (USPS) and FedEx for shipping the ECM back to you. The cost can be calculated accurately when you add the item to your cart and click the “Calculate Shipping” button.
Q. Do you offer any warranty?
A. Sure. We offer a written warranty for the term specified at the top of this page.
Q. How is this service requested? How do I proceed and make the payment?
A. Just “Add to Cart” the service and click on checkout. Payments are processed by PayPal. You may complete the checkout as a guest or better yet, you may register to get tracking information directly to your account and important notes about your order.
